Complete axle shaft set
1971-80 Scout II, Terra or Traveler w/ Dana 44 front axle
Replaces IH part numbers 459392C1(outer), 427802C1(left) 427803C1(right) and 427804C91(axle u-joint)
Features:
- Forged from premium aircraft quality 4340 Chromoly material.
- Double heat treated; Thru hardened ears and shaft with induction over the entire shaft area.
- Fully machined shaft and yoke U-Joint ears.
- Reinforced (thicker) yoke/U-Joint ears.
- The ears are machined to accept full circle snap rings.
- NO undercut after the splines [which is a weak point on factory shafts].
- Accepts Spicer, Yukon, CTM, Longfield, RCV, or any aftermarket brand U-Joint.
Application(s):
- Dana 30 / 35 / 44 [open knuckle front ends]
- Uses the 1310 series U-Joint with a 1 3/16 diameter cap.

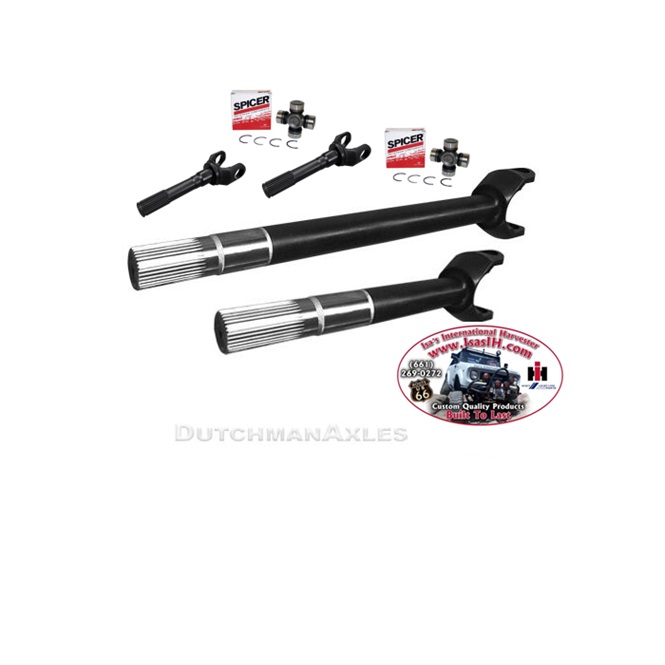

Set includes both outer stub axles and both left and right inner axle shafts and Dana Spicer 5-760X forged axle U-joints
