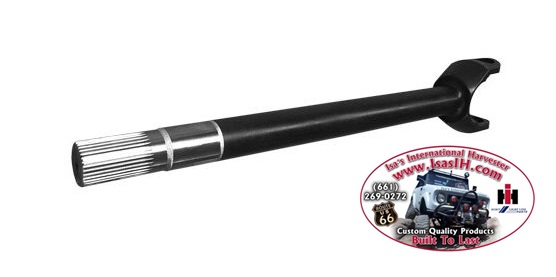

Right, Short side front axle shaft
1971-80 Scout II, Terra or Traveler with Dana 44 front axle
Replaces IH part number 434656C1
Features:
- Forged from premium aircraft quality 4340 Chromoly material.
- Double heat treated; Thru hardened ears and shaft with induction over the entire shaft area.
- Fully machined shaft and yoke U-Joint ears.
- Reinforced (thicker) yoke/U-Joint ears.
- The ears are machined to accept full circle snap rings.
- NO undercut after the splines [which is a weak point on factory shafts].
- Accepts Spicer, Yukon, CTM, Longfield, RCV, or any aftermarket brand U-Joint.
Application(s):
- Dana 30 / 35 / 44 [open knuckle front ends]
- Uses the 1310 series U-Joint with a 1 3/16 Inch diameter cap.
- Reference U-Joint part #s: Spicer 5-297x, 5-760x
- 14.78" Long, 30 spline
